Indoor lights
The following indoor/interior light combinations(inner-roof/roof headliner mounted) are possible to find in a CSL
(courtesy Henric
- No lights at all (very rare but e.g. 2275143)
- One light = left side (most of the LHD CSLs?)
- One light = right side (most of the RHD CSLs?)
- Two lights = left + right (2275328?)
- Two lights = front + right
- Two lights = front + left
- One light = front-mid
- One light = rear (?)
Here is the rule (courtesie Gerrit):
- early carbs, rallye light in the glove box, no light in the
headliner
- late carbs, rallye light on the dash, no light in the headliner
- 2275 series, rallye light on the dash, no light in the headliner
- 2275 series with citypack and 2285 series, no rallye light,
headliner light on the driverīs side
- 4355 series, no rallye light, headliner light on the driverīs
side (left)
If a car has a different set up, it has been modified at some point.

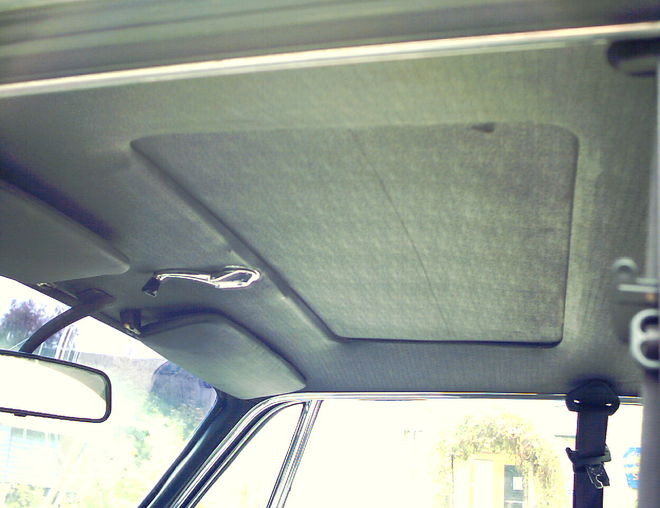

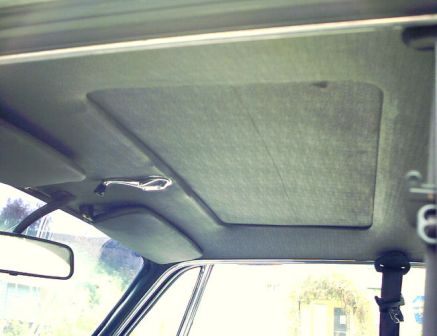

2275143
Credit / Thank you
Henrich, Gerrit
|
|
